RWS “Green Goblin” Shunter Body Kits (V1–V3)

Highly detailed freelance 0-4-0 shunter locomotive body kits.

The kits themselves are generic freelance locomotive bodies, usually 3D printed in a blank canvas grey.

They suit a wide variety of freelance industrial liveries, as demonstrated by examples such as Sam Moss’s burgundy locomotive called “Byron” which is also seen in the Sparkshot Gallery

Flexible payment options available

Features
• 3D printed in high-detail photopolymer MSLA resin
• Designed for straightforward cleaning, priming, and finishing using standard model paints
• Couplings: User’s choice; not supplied
• Compact freelance 0-4-0 industrial locomotive design
• Includes smokebox door, buffers, cab roof, backhead controls (Versions 2 and 3 only)
• Designed to work with compatible RTR chassis
• V2 & V3 versions in 4mm scale are designed to fit the Hornby Peckett W4 00 chassis
• Multiple scales supported: 4mm/OO/EM/P4, 2FS, N, TT, H0, S, 7mm/O Gauge

Detailed Features
• Most product photographs show finished customer or builder models to demonstrate their potential once assembled and painted
• Some images may show 3D renders of the body shell
• Due to platform limitations, images may default to a representative version rather than the exact selected variant
• The SCC catalogue contain additional photographs of variants and scales

4mm V2/V3 chassis fitting notes:
• Designed around the Hornby Peckett W4 00 chassis
• The two DCC locking tabs on the chassis usually need clipping off for the body to fit correctly
• Mounting holes are designed to accept the same screws used on the original chassis (carefully ream holes before fitting)
• Cylinder Shrouds are included with 4mm / 00 orders and fit around the Peckett cylinders to remove the gap below the running plate

Note:
Running plate fronts / buffer beams on V2 models have since been extended forward by approximately 3mm to match the proportions used on the V3 versions.

Available Versions
V1
Inspired by Wilbert Awdry’s original kit-bashed 0-4-0 locomotive.

V2 Series
A more realistically proportioned industrial shunter, with loco characteristics inspired by engines such as Avonside, Hunslet and Hudswell Clark engines

• V2 – Standard configuration

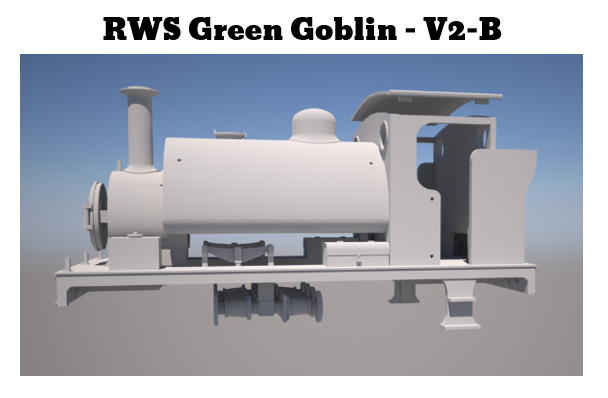

• V2-B – Modified saddle tank details and bunker
• V2-C – As V2-B but fitted with the standard V2 saddle tank
• V2-D – As V2-B but fitted with the standard V2 bunker

V3 Series
Similar to the V2 design but with subtle dimensional changes.

Differences:
• Based on 4mm / 00 versions; smokebox raised by 2mm (6 inches prototype scale)
• Chimney shortened to maintain loading gauge clearance

Variants:
• V3 – Standard configuration
• V3-B – Modified saddle tank and bunker details
• V3-C – As V3-B but with standard V3 saddle tank
• V3-D – As V3-B but with standard V3 bunker

Available Scales
• 4mm / OO, EM, P4
• 2mm Finescale (2FS)
• ~2mm British N
• 2.54mm TT
• 3mm TT
• 3.5mm H0
• 4.76mm S
• 7mm / O Gauge

Product Images & References
• Photos typically show finished customer models or renders of the body shell
• Due to listing limitations, variant-specific images may not always appear for every version
• Additional photographs can be found in the SCC catalogue

Photo Credits (used with permission)
• Bluebells5529 – RWS Green Goblin V1 painted green

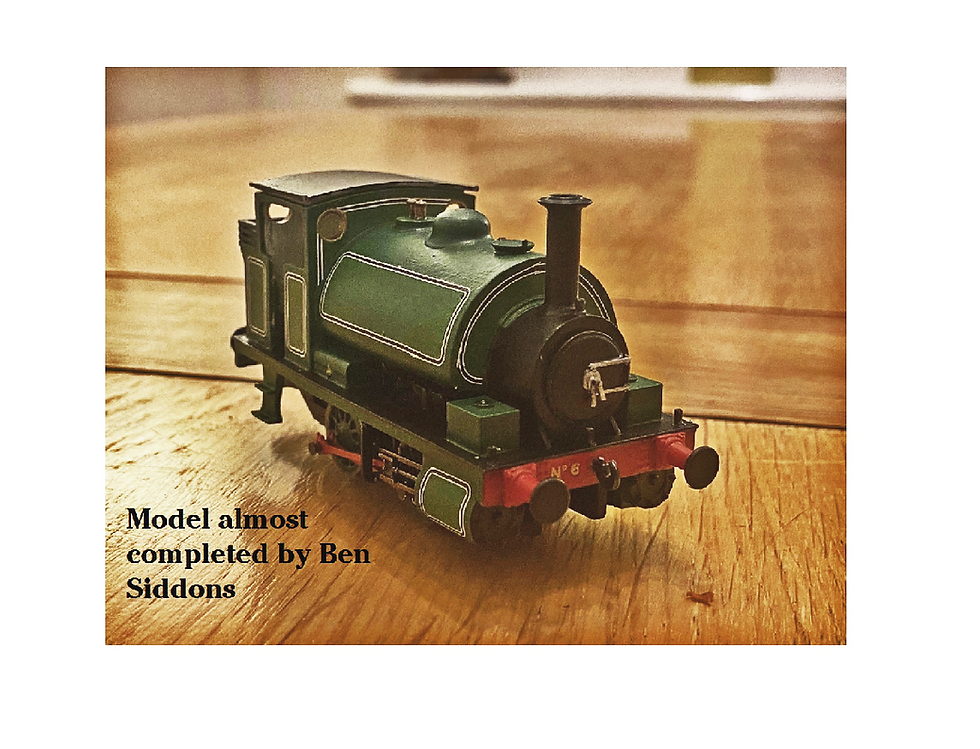

• Sparkshot, @Jay_racer11, Ben Siddons, Ryan T Shaw, Tom Foster, Andrew Postlethwaite – RWS Green Goblin V2 painted green
• Sam Moss – RWS Green Goblin V2 painted in burgundy as “Byron”
• BennT_23, Suddery Station Master – RWS Green Goblin V3 painted green
• Jay_racer11 – RWS Green Goblin V3 painted in green & heavily weathered



Loco Lamps x5   —   hollowed out to sit on lamp irons with blue-tack (included!) for
interchangeable head-codes;   —  👉 Grab them Here
